Depth 300m 200m 100m Water Well Rig Drilling Customizable Colors / Words

Jinzhou City Shitan Machinery Equipment CO. LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Depth 300m 200m 100m Water Well Rig Drilling Customizable Colors / Words

  • 1
  • 2

Brand Name : SHITAN

Model Number : ST-300

Certification : ISO,CE

Place of Origin : Hebei ,China

MOQ : 1SET

Price : Negotiate

Payment Terms : T/T, Western Union

Supply Ability : 1000set

Delivery Time : 5-8 workday

Packaging Details : Wooden Box

Type : Rotary Drilling Rig

Use : Water Well

Power Type : Diesel

Drilling Diameter : 105-305MM

Drilling Depth : Max.300m

Drill pipe length : 1.5m/3m/6m

Weight : 8T

Contact Now

ST300 Pneumatic Drill

What kind of drilling rig is good?

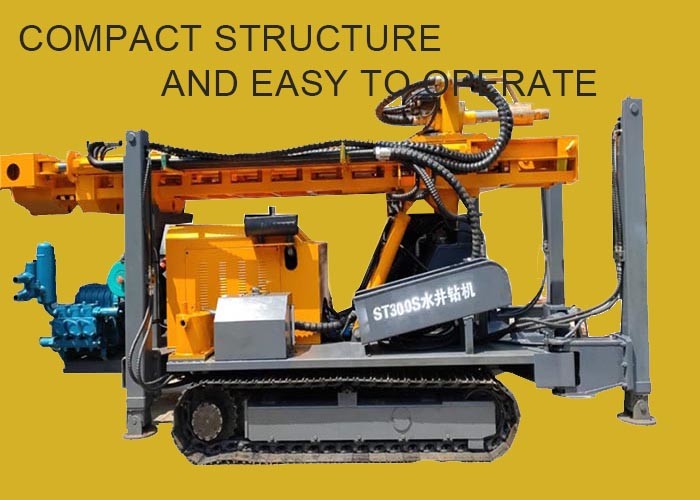

Check out the ST300 water well drilling rig, which can provide powerful 300-meter drilling performance in the most rugged terrain in Africa and Asia. It is equipped with a 78 kW Yuchai engine with a torque of up to 8,900 Nm, and can drill 105-305 mm holes in soft soil and hard rock environments. It has a compact design and a 30° climbing ability, and can travel stably in mountainous areas and swamps. With more than 20 years of professional experience and comprehensive after-sales support, you are welcome to consult at any time.

Why Choose Us

1.Large-diameter drilling - the drilling diameter range is 105-305mm, meeting the needs of various projects.
2.Deep hole operation capability - the maximum drilling depth is 300m, suitable for deep wells and geothermal projects.
3.Efficient drilling speed - the average drilling efficiency is 10-35m/h, improving construction efficiency.
4.20 years of professional manufacturing experience - focusing on the research and development and production of drilling rigs, with mature and reliable technology.
5.Strict quality control system - ensuring product durability.
6.Independent R&D capability - with an experienced team, supporting customization.

Basic Specifications

Model ST-300
Depth 0-300m
Drilling Hole Diameter 75-305mm
Warranty 1 Year
Key Selling Points Competitive Price
Dimension(L*W*H)

4.8m×1.9m×2.35m

Power Source Diesel Engine Yuchai 78kw

Maximum turning torque

8900

Transportation method

The ST300 Water Well Drilling Rig can be shipped worldwide via multiple transportation options to ensure timely and cost-effective delivery.

  1. Container Shipping (FCL/LCL): Standard 20'/40' containers for single/multiple units

  2. RORO (Roll-on/Roll-off): Ideal for complete rigs with wheels

  3. Breakbulk Shipping: Suitable for oversized components

  4. Air Freight: Available for urgent spare parts delivery

We handle all export formalities including:

  • Professional packaging (waterproof/antirust)

  • Customs clearance documentation

  • Origin certification

  • Insurance arrangement

Depth 300m 200m 100m Water Well Rig Drilling Customizable Colors / Words

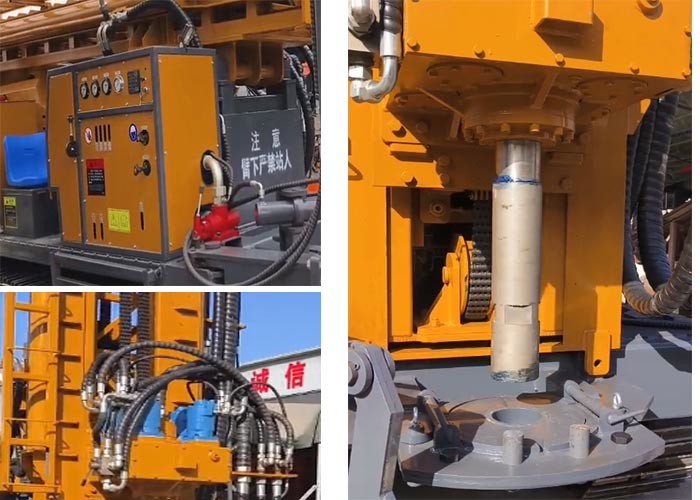

Product details display

Depth 300m 200m 100m Water Well Rig Drilling Customizable Colors / Words

Depth 300m 200m 100m Water Well Rig Drilling Customizable Colors / Words

Depth 300m 200m 100m Water Well Rig Drilling Customizable Colors / Words

Depth 300m 200m 100m Water Well Rig Drilling Customizable Colors / WordsDepth 300m 200m 100m Water Well Rig Drilling Customizable Colors / Words
