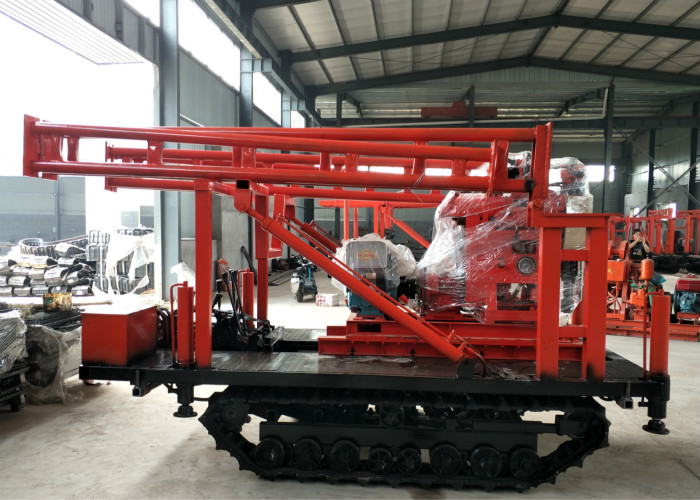

200 Meters Depth Portable Hydraulic Drilling Equipment GK 200 Core Drill Rig
GK 200 Core Drill Rig Introduction
GK 200 drilling rig is widely utilized and featured in high power and hoisting load(2T), large torque transmission, etc. The rotating speed of vertical hexagonal spindle varies between 71r/min-825r/min. Drilling depth 200 meters.
GK 200 Core Drill Rig Technical Data
| Rated drilling depth | 200m |
| Rated boring diameter | 200mm |
| Vertical shaft rotation speed (4 shifts) | 118, 236, 505, 1010.r/min |
| Vertical shaft max. output torque | 1500N*m |
| Max. hositing weight single line) | 17KN |
| Drilling rod diameter | 42mm |
| Drilling dip angle | 90~75° |
| Drill outside diameter (L*B*H) | 1433*697*1273mm |
| Drill weight | 500kg |
| max. boring diameter | 300mm |
GK 200 Core Drill Rig Advantage
1. With the hydraulic feeding mechanism, improve the drilling efficiency, reducing the labor intensity of workers.
2. a ball on a cassette holding mechanism and a six side rod, the rod can be replaced without shutdown
3. hole bottom pressure gauge pressure indicator, and easy to master the status inside the hole.
4. The handle centered, convenient operation.
5. ompact structure, small volume, light weight, convenient move.
GK200 Core Drilling Rig Application
1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.
1.2 Geological core drilling, physical prospecting.
1.3 Small grout Confucius, drill hole drilling.
1.4 Small well drilling.
GK 200 Core Drill Rig Service
· 15 Years Experiences
· 100% Brand New Machines
· 1 Set Small Order Acceptable
· Customized Drilling Rig
· After Sales Service In 24/7
