Parameters Of Full Hydraulic Xy-1a Core Drill, Xy-1a Hydraulic 100m Drilling
Introduction of Water Well Drilling Rig
Xy-1a drilling rig is designed on the basis of XY-1 drilling rig. It is a kind of hydraulic feeding portable drilling rig, which is suitable for engineering geological exploration of industrial and civil buildings, railways, hydropower, transportation, bridges, dam foundations and other buildings. application1. It is suitable for general survey, geophysical exploration, road and building exploration and drilling engineering.2. Diamond, alloy, steel sand and steel grain bits can be selected for drilling according to different formations.3. It can drill sandy clay and bedrock of grade 2-9.
Water Well Drilling Rig parameters
| XY-1A Type |
| Drill | Swivel Head |
| Drilling depth | Max.150m | Spindle speed | 1010,790,470,295,140(r/min) |
| Hole diameter | Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42.50mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump |
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | | |
| Rated speed | 1500r/min | | |
| Hoist | Power(diesel) |
| Max. lifting capacity | 15KN | Model(diesel engine) | 1105 |
| Hoisting drum revolution | 121,76,36(r/min) | Rated power | 18KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG |
| SIZE | 1620*970*1560mm |
main features
1. It is equipped with oil pressure automatic feeding mechanism to improve drilling efficiency and reduce labor intensity.
2. The drilling rig adopts ball clip type clamping mechanism, which can reverse the rod, and is easy to operate and safe.
3. The active drill pipe is large, the transmission torque is large, and it is not easy to break.
4. It is equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is easy to master the situation in the hole.
5. Centralized handle, convenient operation and safety.
6. The structure is compact. The drilling rig, water pump and diesel engine are all installed on the same base, occupying a small space.
7. Light weight, strong decomposition, easy to operate, suitable for plain and mountain work.
FAQ
1. Q: Are you a factory or a trading company? A: We are trading companies and manufacturers. Extensive experience in machinery and equipment.
2. Q: How long is your delivery time?
A: It is according to the model and quantity. Generally it is 3-5 days if the machines are in stock. It will be 15-30 days if you
want to customize the machines.
3. Q: What are your payment terms?
A: We accept L/C, T/T and Western union is available. etc.
4. Q:Besides machines,can you provide tools of machines?
A:Yes.Both machines and tools can be provided in our factory.Our company has an independent spare-part departments.If you just only need tools of your machines,we can also provide you even if your machine is originally not from our factory. Just tell us your needs and we can make a free design for you.
5.Q: Is it possible to manufacture products according to the drawings provided by customers?
A: Yes, we can provide customized services, you can provide us with ideas or drawings, and we will do our best to meet
your requirements.
Product Tags:
|
|

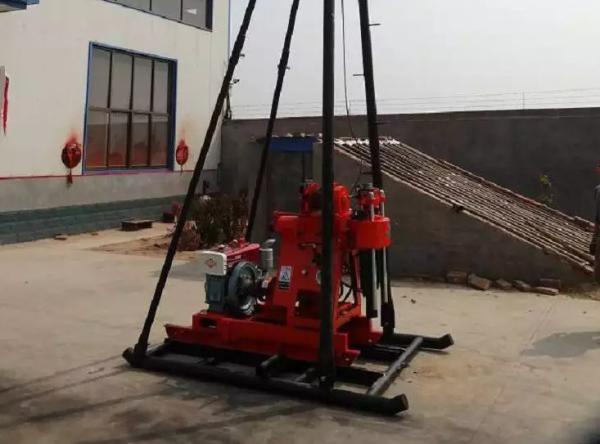

Full Hydraulic Xy-1a 100m Depth Core Drill Rig Images
|
