Product parameter

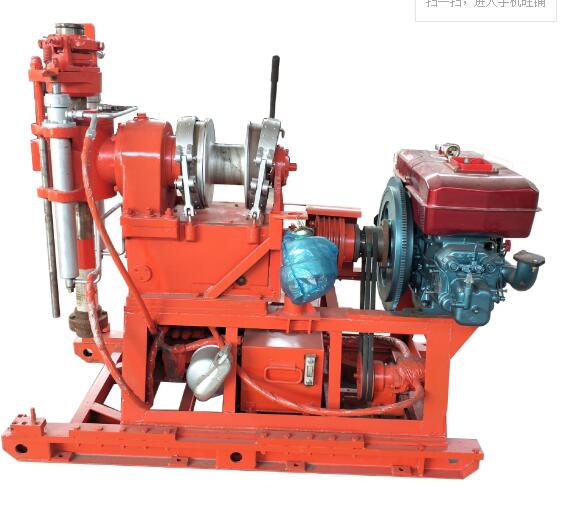

Mini Soil And Geological Investigation Drilling Rig
| Drilling diameter(mm) |
75,91,110,130,150,300 |
| Drilling depth (m) |
150,100,70,50,30 |
| Drill pipe diameter (mm) |
42,50 |
| Drilling angle(°) |
90~75 |
| Equipment size(L * B * H) |
1710*850*1340 (mm) |
| Rig weight (except engine) |
500 |
| Gyrator |
| Spindle speed (four gear) (r/min) |
140,295,470,790,1010 |
| Spindle travel(mm) |
450 |
| Spindle no-load lifting maximum moving speed(m/s) |
0.05 |
| Spindle no load drop maximum movement speed(m/s) |
0.067 |
| Spindle maximum feed pressure(KN) |
15 |
| Spindle maximum lifting force(KN) |
25 |
| Winch assembly |
| Winch maximum lifting force (single rope) |
15 |
| Reel speed (r/min) |
36,76,121 |
| Reel circumferential speed(m/s) |
0.166,0.331,0.733,1.465 |
| Reel diameter(mm) |
140 |
| Wire rope diameter(mm) |
9.3 |
| Wire rope density (m) |
95 |
| Brake diameter(mm) |
252 |
| Brake band width (mm) |
50 |
| Water pump |
| Pump type |
Horizontal single cylinder double acting |
| Maximum displacement (motor)(L/min) |
95 (77) |
| The maximum allowable pressure (Mpa) |
1.2 |
| Work pressure (Mpa) |
0.7 |
| Cylinder diameter (mm) |
80 |
| Piston stroke(mm) |
100 |
| Oil pump |
| Oil pump type |
YBC-20/125 |
| Nominal pressure (Mpa) |
12.5 |
| Rated flow(ml/r) |
20 |
| Rated speed(r/min) |
800-2500 |
Our service
1. We provides technical train for free.
2. Once anything goes wrong with the machine by normal using,our technical person must appear at the first time no matter where you are.
3. When the machine should be maintained, you will receive the reminding from us.
4. According to different geological conditions,we will recommend different construction plans for you.
5. Remind you the wearing parts,so you can prepare enough.
6. 24 hours respond to your quality problem.
7. Other customer's reasonable request
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
