Drilling machine to solve the problems of well drilling, geological exploration, soil testing, etc
Product Description

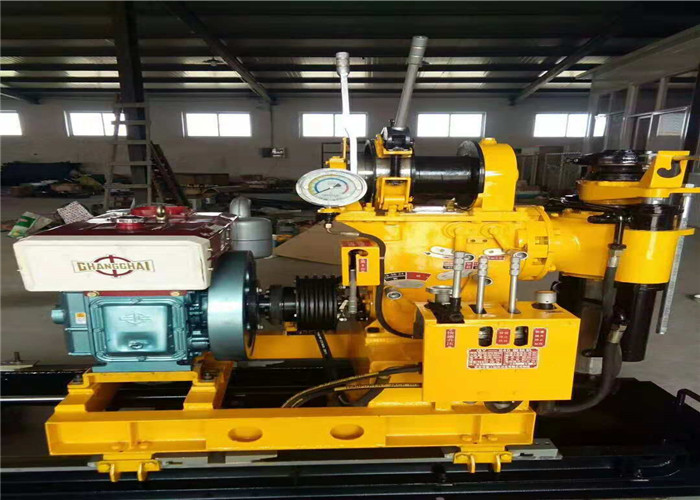

XY-1A drilling rig is a kind of medium shallow hole core drilling machine. The utility model has the advantages of small size, light weight, large power and wide range. It is especially available for constructions of hydroelectric power station, highway, railroad and harbor etc.
Specifications
Drilling depth:180m
Drill diameter:150mm customize
Easy to operate and transport
Lightweight and compact structure
XY-1A Type Water Well Equipment technical parameter
| Drilling depth | 180m |
| Max open hole caliber | 150mm |
| End hole caliber | 75mm |
| Drill rod caliber | 60mm |
| Drilling angle | 90°~75° |
| Drill weight (without power) | 650kg |
| Triangle convert belt | B950 x 4 B1700 x 3 |
| The main machine moving distance | 300mm |
| Power | Diesel engine 22KW /Electric motor 15kw |
| Spindle |
| spindle speed | 64, 128, 287, 557r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.lifting capacity | 2400kg |
| Single line lifting speed | 0.41, 0.82, 1.64m/s |
| Wire rope caliber | 13mm |
| Wire rope length | 35m |
| Reel diameter | 140mm |
| Hug floodgate caliber | 260mm |
| Hug floodgate belt width | 70mm |
| Mud pump |
| Type | Horizontal single-urn twin-action |
| Displacement | Diesel engine 170L/min Electric motor 150L/min |
| Maximum pressure | 3Mpa |
| Work pressure | 1.5Mpa |
| Inlet pipe caliber | 40mm |
| Outlet pipe caliber | 30mm |
| Triangle convert belt | B1728mm |
| Hydraulic oil pump |
| Type | XY-1A |
| Triangle convert belt | B1100 X 1
|
Main Features:
1. Very powerful at soil, sand, hard rock, etc. land condition.
2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available for your choice, which can drill both soft and hard ground, especially diamond drill bit effective in drilling hard rocks.
3. Hydraulic control system for greatly improving the working efficiency, saving labor force.
4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient to transport.
5. Power can be diesel engine or electric motor, as per your request.
Features of XY-1A hydraulic core drill
a. XY-1A has eight forward roation gears and two reverse rotation gears, high speed, strong stroke and wide application.
b. Hydraulic chuck, can complete no-stopping rotating
c. Big inner diameter, able to use big or middle hexagonal driving lever
d. lightweight, can be easily disassembled for transport and apporiable to working conditions in plain and mountain areas
At Rig Source, all of our geotechnical & environmental drill rigs have been selected based on their reputation of excellence. If you’re opting to purchase geotechnical & environmental drill rigs used, they are available “as is,” or can be restored by our service department to make them, “like new.” Regardless, our expertise in the geotechnical & environmental drill rig industry will allow you to rest assured that we will get you into the auger drill rigs or direct push units appropriate for you.
